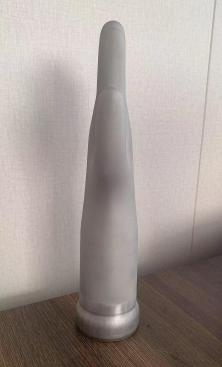

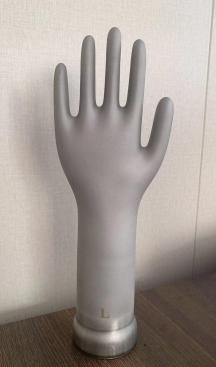

Why Choose Stainless Steel Glove Formers?
Stainless steel glove formers are key in the nitrile/latex/PVC glove production line. When the Glove production line runs, Glove formers directly contact the chemically active ingredients and create the microenvironment needed for a high-quality rubber layer – uniform and free of pinholes.
Traditional production lines have long used ceramic glove formers, and these traditional materials share some common drawbacks.
- Due to its natural fragility and poor thermal shock resistance, heavy ceramics are easy to break or leave collision scars during the production cycle. The cost is high because the damaged shaper cannot be recovered, resulting in a short service life of the shaper.
2. Traditional ceramic hand models have limited resistance to corrosive media. As a result, their surface characteristics (such as roughness) change over time, which brings great uncertainty to glove quality control and the opportunity for cross-contamination between containers.

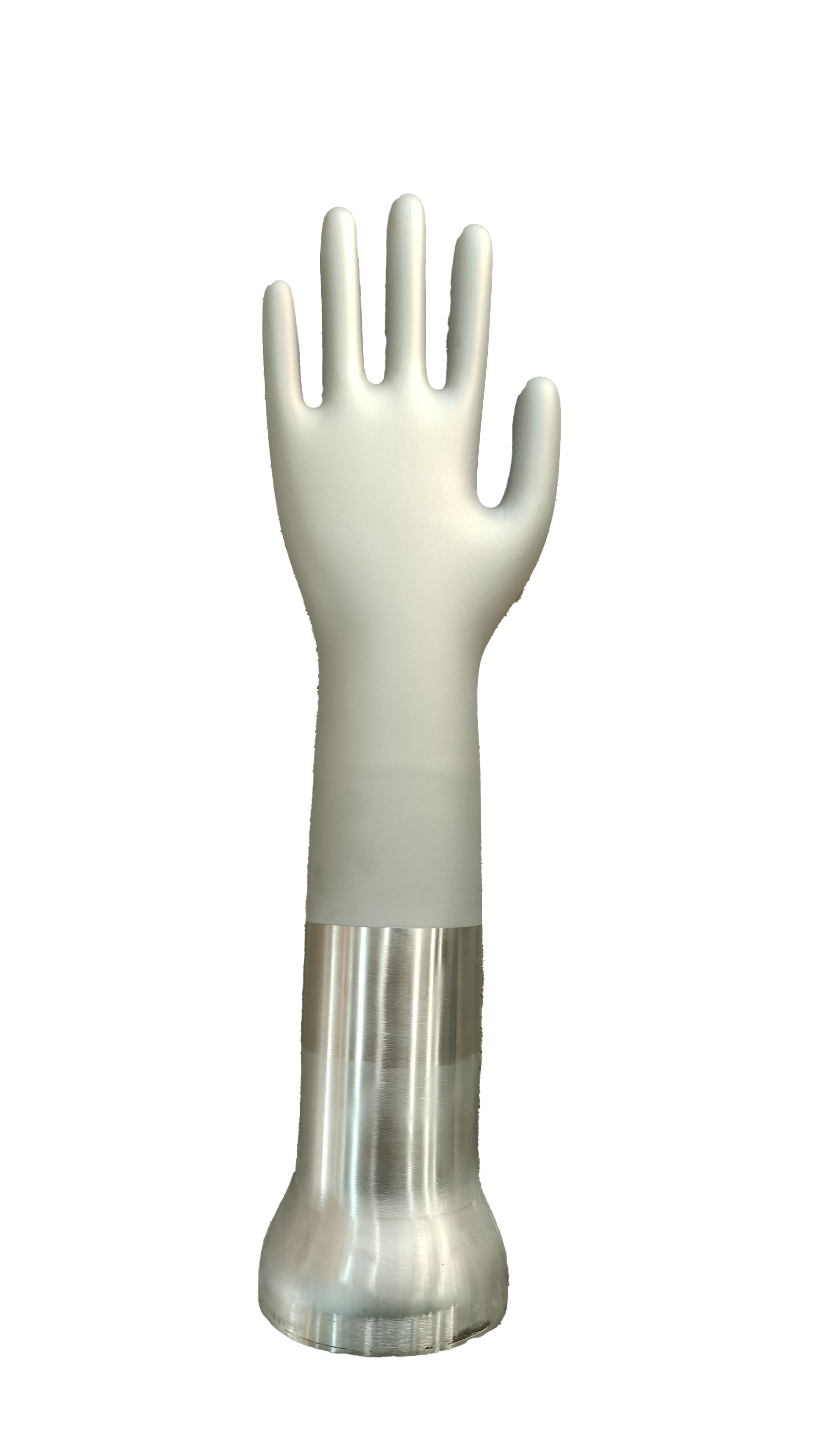

Nitrile Series Products

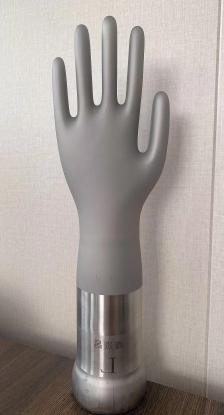

PVC Series Products

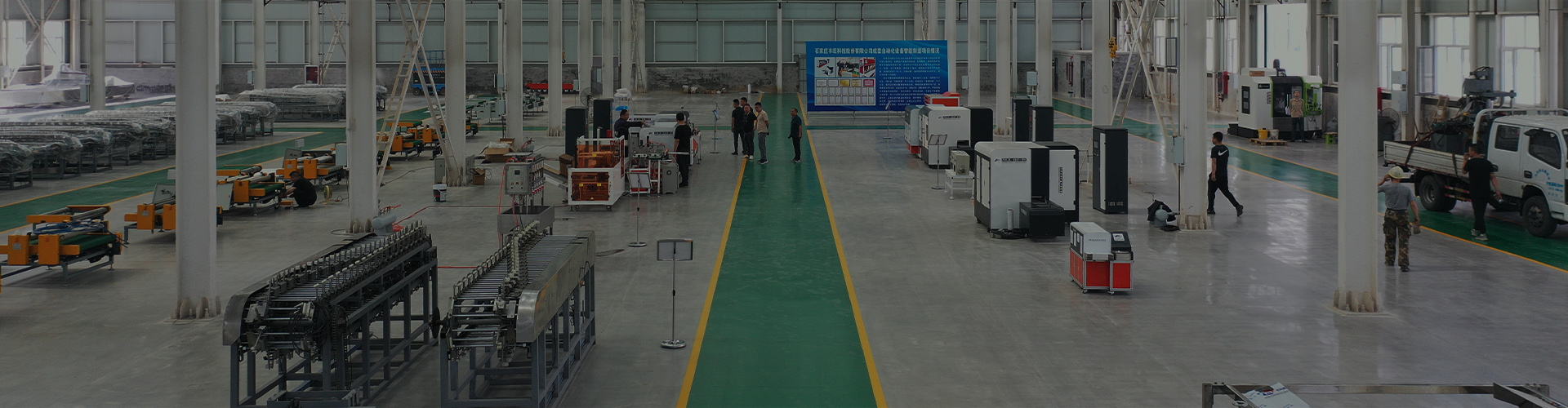

Fengwang Productive Capacity

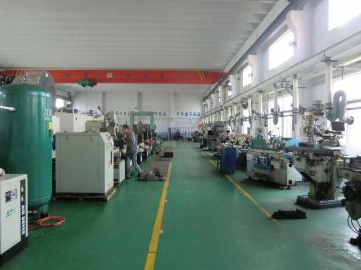

Precision Machining of Moulds

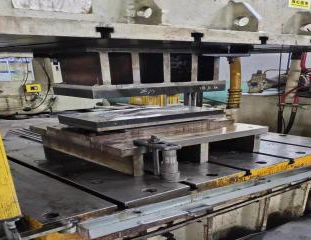

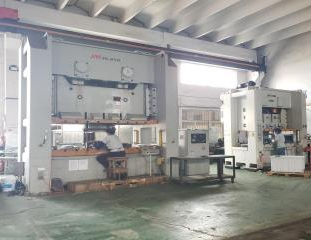

Stamping, Stretching, Spinning

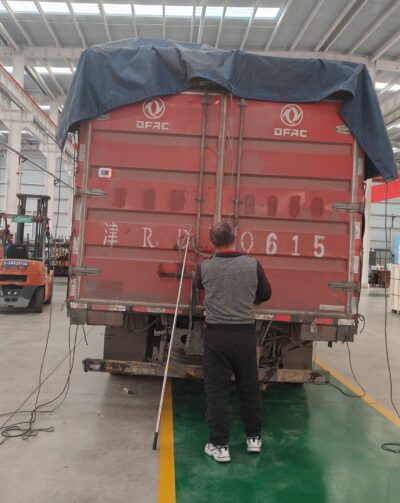

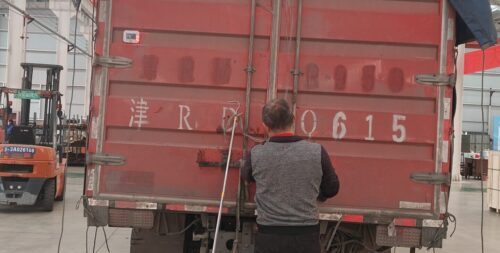

Fengwang Stainless Steel Glove Former Latest Order
Stainless Steel Glove Former in Production line Comparison
| Ceramic glove former in production line transformation of stainless steel glove former production line (single mold line) | |||
|
S/N |
Classification | Original
Parameter |
Modified
Parameters |
| 1 | Speed | 200 | |
| 2 | Temperature: oil return | 241℃-242℃ | 214℃-216℃ |
| 3 | Oil temperature | 278℃-280℃ | 236℃-238℃ |
| 4 | Proportion of viscosity reducing agent | Reduce | |
| 5 | Slot temperature | 50℃-60℃ | |
| 6 | PU slot oven inlet temperature | 110℃ | |
| 7 | Curling temperature | 75℃ | |
| 8 | Pre-film temperature (mold temperature) | 65℃ | |
| 9 | Outside the stripper | 65℃ | |
| 10 | PVC Coaching temperature(Mold temperature) | 55℃ |
Stainless Steel Glove Former Cleaning Scheme
The stainless steel hand mold is cleaned from 50 – to 60 days once.
The cleaning method is the same as ceramic hand mold(cleaning agent).
Cleaning agent ratio 1:20, wash 2 laps for clean water for 3 laps.
Wash time is about 15 pieces per minute.
Advantages of Using Stainless Steel Glove Formers
Fengwang stainless steel hand model has the following features:
1. Ceramic breakage rate is about 55,000 RMB/year
2. The reduction of coagulant is about 65,000 RMB/year
3. Production of stainless steel glove formers speed increased by 15% (production increased)
4. Stainless steel glove former is about 110 grams lighter than ceramic glove former. Load reduction of the entire line about 500-600 kg (energy saving)
5. Pinhole rate reduction, tensile strength improvement, quality improvement (European standard)
Example: The minimum weight of M ceramic production is about 4 grams (European standard needs to be adjusted production line)
The minimum weight of stainless steel production is about 3.5 grams (Can reach European standard without adjusting line)”
6. Temperature:The original parameter 278℃-280℃ is reduced to 236℃-238℃ (safety factor is improved, the risk is reduced)
7. Natural gas calculation: Reduce 1 cubic meter of natural gas per box, and the price is 4 RMB/cubic meter.
500 boxes x4 RMB/cube =2000 RMB/day
2000RMBx30days=60000RMB/month
60000day*11months=660000RMB/year
